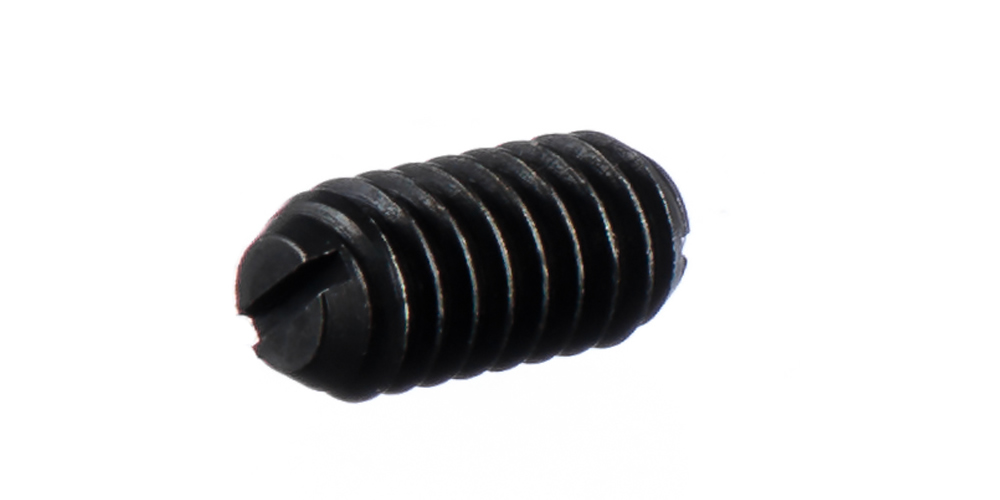

产品型号 B54Vlier 碳钢&不锈钢球头弹簧柱塞的紧凑型设计，适合侧面装载的应用。 不锈钢球头弹簧柱塞防锈、耐腐蚀。是食品、医疗等特殊环境应用的理想选择。为您提供最大限度的保护。
独特工艺
- 最小&最轻的弹簧加载装置
- 侧面装载承受
- 可控端面压力
- 一字螺丝刀安装
- 耐腐蚀不锈钢
- 耐高温不锈钢
典型用途
- 转位
- 齿轮变速器
- 定位装置
- 扭距限制
- 定位
- 制动装置
| 磅&牛顿转换： | |||||||||
| 产品型号 | 端面压力（磅） |
螺纹等级 |
英寸 |
英寸 |
英寸 |
||||
|---|---|---|---|---|---|---|---|---|---|
不含锁紧元件 |
包含锁紧元件 |
初始弹力 |
末端弹力 |
A |
B |
C |
D |
||
| B46 | B46P | 1/8 |
1/2 |
4-48 |
.187 |
.020 |
.062 |
||
| B47 | B47P | 1/4 |
3/4 |
5-40 |
.250 |
.020 |
.062 |
||
| B48 | B48P | 1/2 |
1 |
6-40 |
.312 |
.023 |
.078 |
||
| B50A | B50AP | 1/2 |
1-1/4 |
8-32 |
.344 |
.025 |
.094 |
||
| B50 | B50P | 1/2 |
1-1/4 |
8-36 |
.344 |
.025 |
.094 |
||
| B52 | B52P | 1-1/2 |
3 |
10-32 |
.513 |
.025 |
.094 |
||
| BL52 | BL52P | 1/2 |
1-1/2 |
10-32 |
.513 |
.025 |
.094 |
||
| BH52 | BH52P | 2 |
5 |
10-32 |
.513 |
.025 |
.094 |
||
| B54 | B54N | 3 |
7 |
1/4-20 |
.531 |
.035 |
.125 |
||
| BL54 | BL54N | 2 |
4 |
1/4-20 |
.531 |
.035 |
.125 |
||
| BH54 | BH54N | 4 |
12 |
1/4-20 |
.531 |
.035 |
.125 |
||
| B56 | B56N | 4 |
9 |
5/16-18 |
.578 |
.040 |
.156 |
||
| BL56 | BL56N | 2 |
4-1/4 |
5/16-18 |
.578 |
.040 |
.156 |
||
| BH56 | BH56N | 6 |
17 |
5/16-18 |
.578 |
.040 |
.156 |
||
| B58 | B58N | 5 |
10 |
3/8-16 |
.625 |
.048 |
.188 |
||
| BL58 | BL58N | 2-1/5 |
5 |
3/8-16 |
.625 |
.048 |
.188 |
||
| BH58 | BH58N | 6 |
21 |
3/8-16 |
.625 |
.048 |
.188 |
||
| B60 | B60N | 6 |
12 |
1/2-13 |
.750 |
.072 |
.281 |
||
| BL60 | BL60N | 3 |
6 |
1/2-13 |
.750 |
.072 |
.281 |
||
| BH60 | BH60N | 6 |
30 |
1/2-13 |
.750 |
.072 |
.281 |
||
| B62 | B62N | 9 |
18 |
5/8-11 |
.984 |
.096 |
.375 |
||
| BL62 | BL62N | 4-1/2 |
9 |
5/8-11 |
.984 |
.096 |
.375 |
||
| BH62 | BH62N | 7 |
50 |
5/8-11 |
.984 |
.096 |
.375 |
||
*锁紧元件置于螺纹表面。
| 磅&牛顿转换： | |||||||||
| 产品型号 | 端面压力（磅） |
螺纹等级 |
英寸 |
英寸 |
英寸 |
||||
|---|---|---|---|---|---|---|---|---|---|
不含锁紧元件 |
包含锁紧元件 |
初始弹力 |
末端弹力 |
A |
B |
C |
D |
||
| SSB46 | SSB46P | 1/8 |
1/2 |
4-48 |
.187 |
.020 |
.062 |
||
| SSB47 | SSB47P | 1/4 |
3/4 |
5-40 |
.250 |
.020 |
.062 |
||
| SSB48 | SSB48P | 1/2 |
1 |
6-40 |
.312 |
.023 |
.078 |
||
| SSB50A | SSB50AP | 1/2 |
1-1/4 |
8-32 |
.344 |
.025 |
.094 |
||
| SSB50 | SSB50P | 1/2 |
1-1/4 |
8-36 |
.344 |
.025 |
.094 |
||
| SSB52 | SSB52P | 1-1/2 |
3 |
10-32 |
.513 |
.025 |
.094 |
||
| SSBL52 | SSBL52P | 1/2 |
1-1/2 |
10-32 |
.513 |
.025 |
.094 |
||
| SSBH52 | SSBH52P | 2 |
5 |
10-32 |
.513 |
.025 |
.094 |
||
| SSB54 | SSB54N | 3 |
7 |
1/4-20 |
.531 |
.035 |
.125 |
||
| SSBL54 | SSBL54N | 2 |
4 |
1/4-20 |
.531 |
.035 |
.125 |
||
| SSBH54 | SSBH54N | 4 |
12 |
1/4-20 |
.531 |
.035 |
.125 |
||
| SSB56 | SSB56N | 4 |
9 |
5/16-18 |
.578 |
.040 |
.156 |
||
| SSBL56 | SSBL56N | 2 |
4-1/4 |
5/16-18 |
.578 |
.040 |
.156 |
||
| SSBH56 | SSBH56N | 6 |
17 |
5/16-18 |
.578 |
.040 |
.156 |
||
| SSB58 | SSB58N | 5 |
10 |
3/8-16 |
.625 |
.048 |
.188 |
||
| SSBL58 | SSBL58N | 2-1/5 |
5 |
3/8-16 |
.625 |
.048 |
.188 |
||
| SSBH58 | SSBH58N | 6 |
21 |
3/8-16 |
.625 |
.048 |
.188 |
||
| SSB60 | SSB60N | 6 |
12 |
1/2-13 |
.750 |
.072 |
.281 |
||
| SSBL60 | SSBL60N | 3 |
6 |
1/2-13 |
.750 |
.072 |
.281 |
||
| SSBH60 | SSBH60N | 6 |
30 |
1/2-13 |
.750 |
.072 |
.281 |
||
| SSB62 | SSB62N | 9 |
18 |
5/8-11 |
.984 |
.096 |
.375 |
||
| SSBL62 | SSBL62N | 4-1/2 |
9 |
5/8-11 |
.984 |
.096 |
.375 |
||
| SSBH62 | SSBH62N | 7 |
50 |
5/8-11 |
.984 |
.096 |
.375 |
||
*锁紧元件置于螺纹表面。
| 磅&牛顿转换： | |||||||||
| 产品型号 | 端面压力（牛） |
螺纹等级 |
毫米 |
毫米 |
毫米 |
||||
|---|---|---|---|---|---|---|---|---|---|
不含锁紧元件 |
包含锁紧元件 |
初始弹力 |
末端弹力 |
A |
B |
C |
D |
||
| BM3A | BM3AP | 3.0 |
4.5 |
M3 x 0.5 |
7.0 |
0.4 |
1.5 |
||
| BM4A | BM4AP | 4 |
10 |
M4 x 0.7 |
9.0 |
0.80 |
2.5 |
||
| BM5A | BM5AP | 8 |
14 |
M5 x 0.8 |
12.0 |
0.9 |
3.0 |
||
| BMH5A | BMH5AP | 15 |
22 |
M5 x 0.8 |
12.0 |
0.9 |
3.0 |
||
| BM6A | BM6AP | 9 |
13 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
| BML6A | BML6AP | 2 |
6 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
| BMH6A | BMH6AP | 28 |
40 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
| BM8A | BM8AN | 15 |
30 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
| BML8A | BML8AN | 5 |
10 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
| BMH8A | BMH8AN | 40 |
60 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
| BM10A | BM10AN | 20 |
35 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
| BML10A | BML10AN | 8 |
15 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
| BMH10A | BMH10AN | 60 |
90 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
| BM12A | BM12AN | 30 |
55 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
| BML12A | BML12AN | 10 |
20 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
| BMH12A | BMH12AN | 75 |
115 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
| BM16A | BM16AN | 41 |
86 |
M16 x 2.0 |
24.0 |
3.5 |
10.0 |
||
| BMH16A | BMH16AN | 68 |
142 |
M16 x 2.0 |
24.0 |
3.5 |
10.0 |
||
*锁紧元件置于螺纹表面。
| 磅&牛顿转换： | |||||||||
| 产品型号 | 端面压力（牛） |
螺纹等级 |
毫米 |
毫米 |
毫米 |
||||
|---|---|---|---|---|---|---|---|---|---|
不含锁紧元件 |
包含锁紧元件 |
初始弹力 |
末端弹力 |
A |
B |
C |
D |
||
| SBM3 | SBM3P | 3.0 |
4.5 |
M3 x 0.5 |
7.0 |
0.4 |
1.5 |
||
| SBM4 | SBM4P | 4 |
10 |
M4 x 0.7 |
9.0 |
0.80 |
2.5 |
||
| SBM5 | SBM5P | 8 |
14 |
M5 x 0.8 |
12.0 |
0.9 |
3.0 |
||
| SBMH5 | SBMH5P | 15 |
22 |
M5 x 0.8 |
12.0 |
0.9 |
3.0 |
||
| SBM6 | SBM6P | 9 |
13 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
| SBML6 | SBML6P | 2 |
6 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
| SBMH6 | SBMH6P | 28 |
40 |
M6 x 1.0 |
14.0 |
1.0 |
3.5 |
||
| SBM8 | SBM8N | 15 |
30 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
| SBML8 | SBML8N | 5 |
10 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
| SBMH8 | SBMH8N | 40 |
60 |
M8 x 1.25 |
16.0 |
1.5 |
5.0 |
||
| SBM10 | SBM10N | 20 |
35 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
| SBML10 | SBML10N | 8 |
15 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
| SBMH10 | SBMH10N | 60 |
90 |
M10 x 1.5 |
19.0 |
2.0 |
6.0 |
||
| SBM12 | SBM12N | 30 |
55 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
| SBML12 | SBML12N | 10 |
20 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
| SBMH12 | SBMH12N | 75 |
115 |
M12 x 1.75 |
22.0 |
2.5 |
8.0 |
||
| SBM16 | SBM16N | 41 |
86 |
M16 x 2.0 |
24.0 |
3.5 |
10.0 |
||
| SBMH16 | SBMH16N | 68 |
142 |
M16 x 2.0 |
24.0 |
3.5 |
10.0 |
||
*锁紧元件置于螺纹表面。
端面压力色彩代码
- 碳钢 ——主体用不同颜色来区分端面压力
银色——轻荷重；黑色——标准荷重；金色——重荷重 - 不锈钢 ——主体用不同颜色来区分端面压力
本色——轻荷重；黑色——标准荷重；橘色——重荷重
